Novo
Opis proizvoda

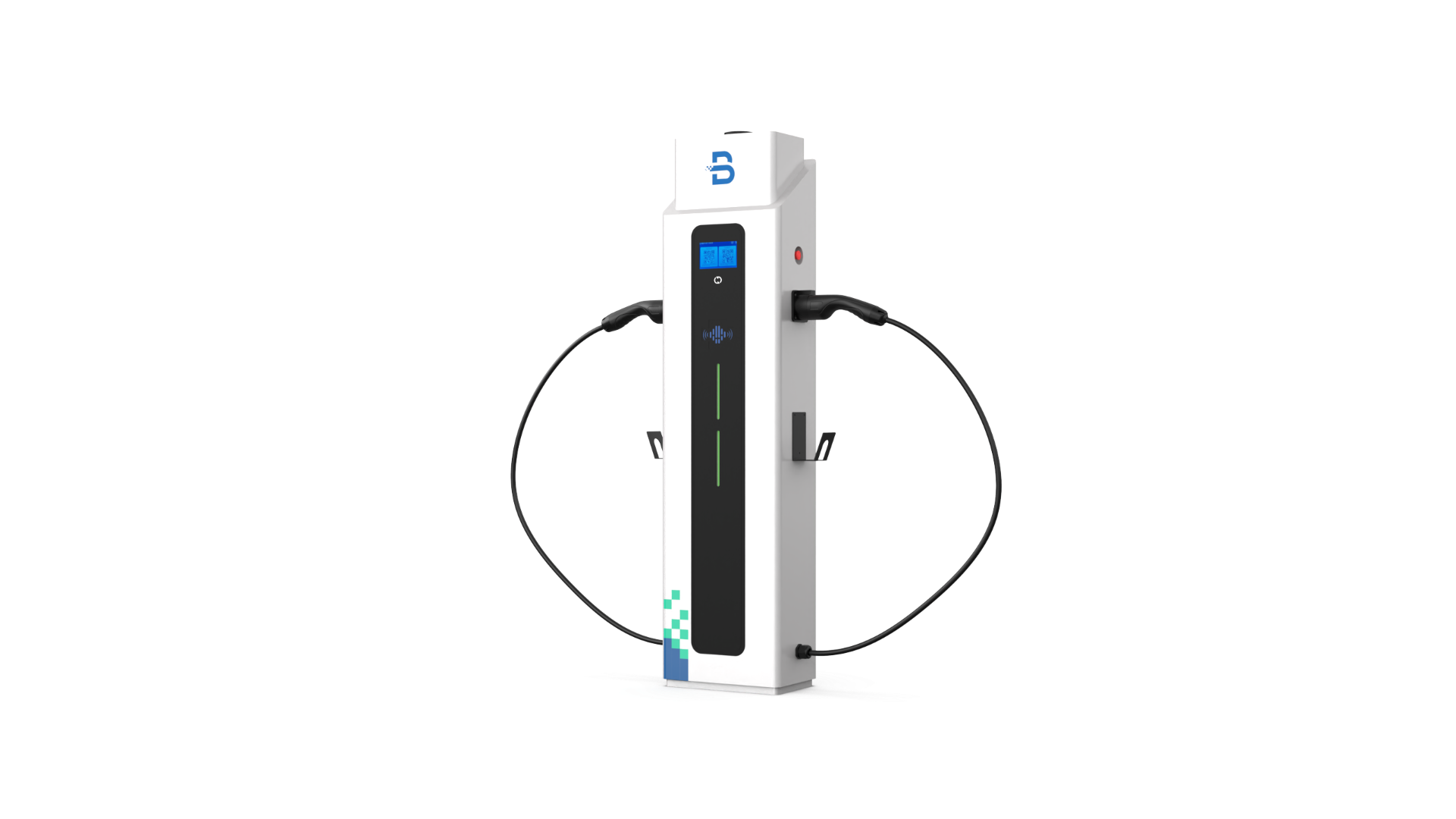

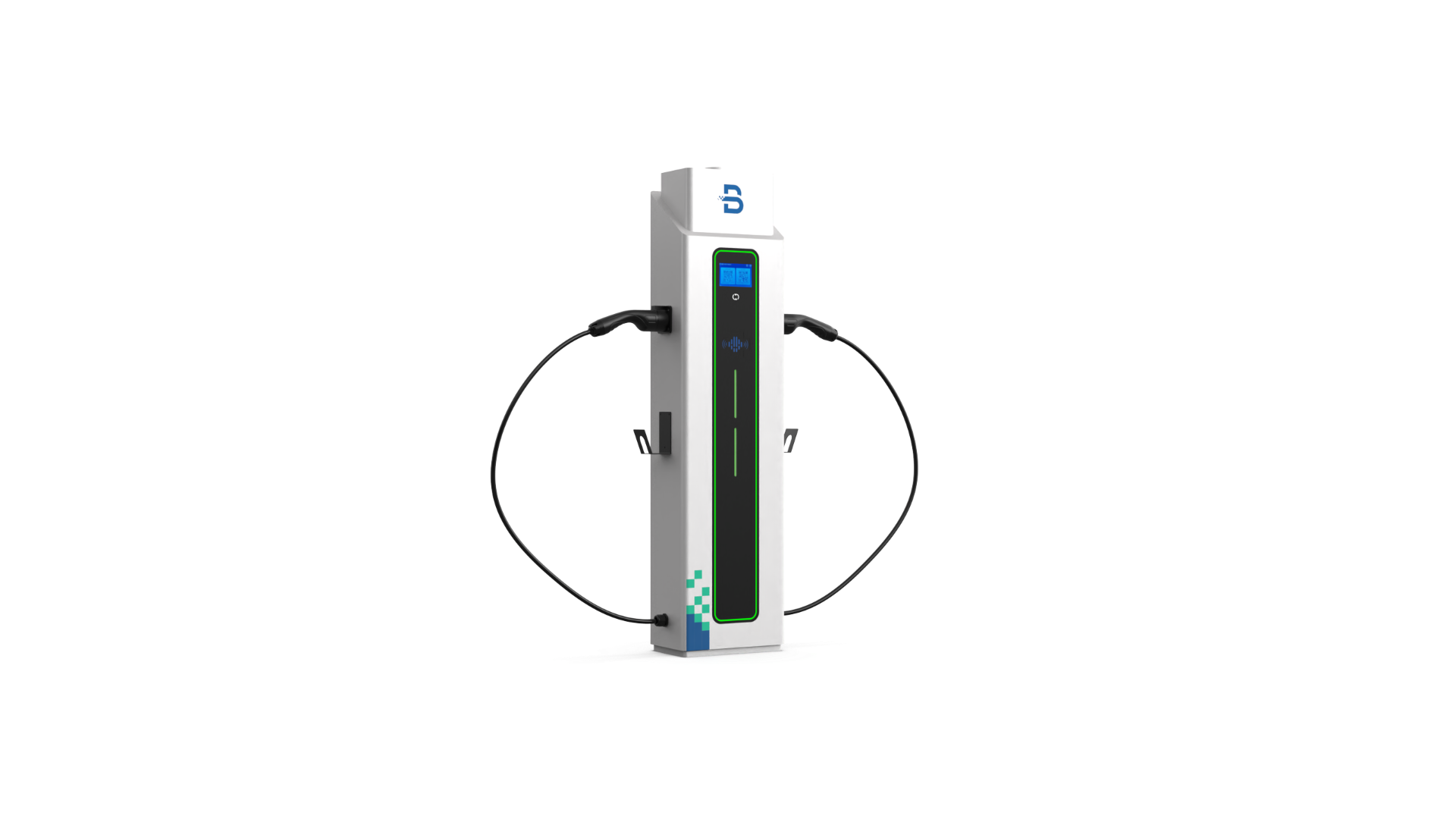

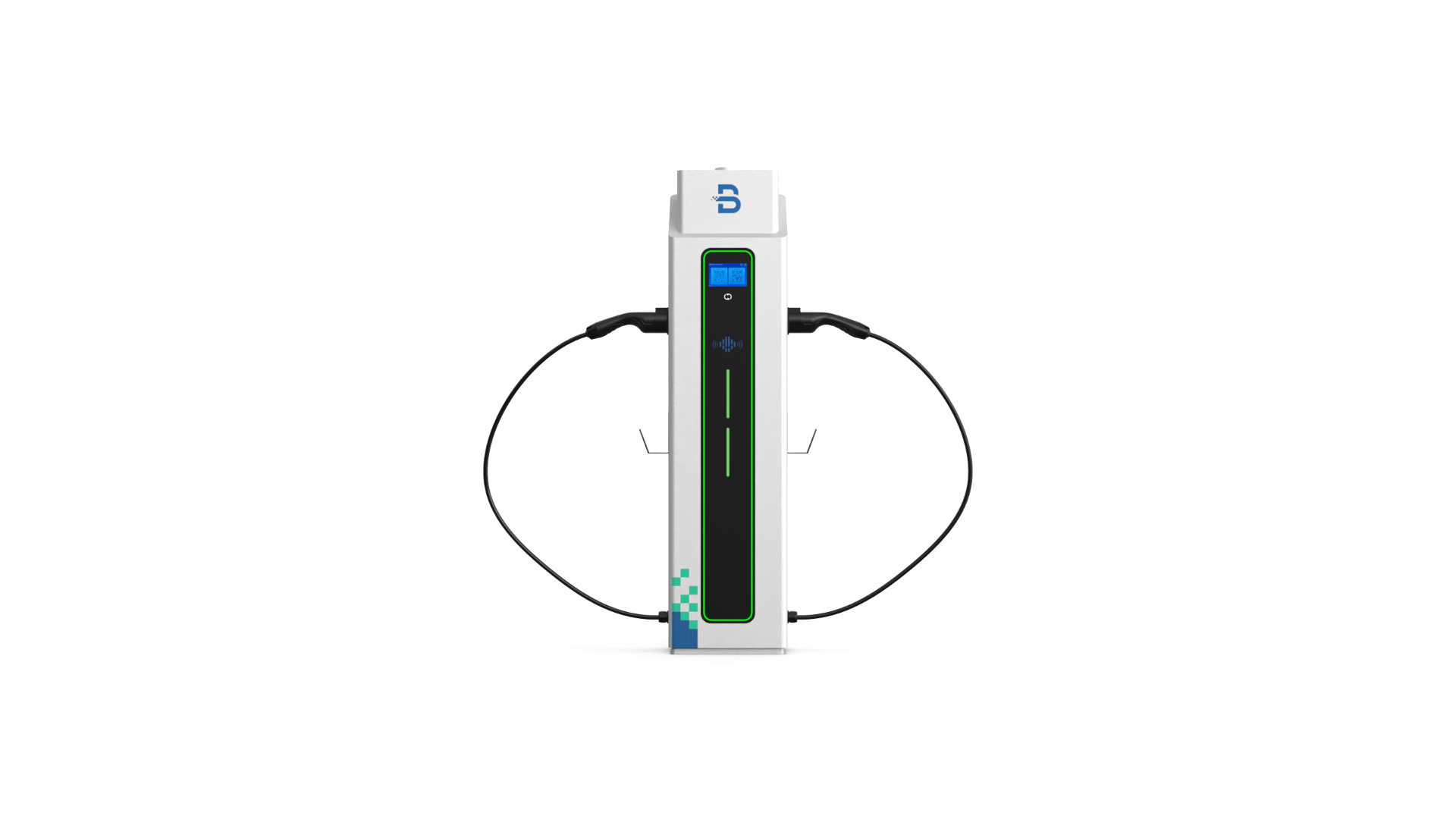

BENY Electric Smart EV punjac sa duplim tip 2 (IEC 62196-2) konektorom 3-faze 32Amp po 22kW konektoru IP55 AC kabinet CE sertifikovani pujnac
- Type A + DC6mA or Type B RCBO
- Over Current Protection
- Over Voltage & Under Voltage Protection
- Over Temperature Protection
- Lightning Protection
- Contactor Adhesion Protection
- Emergency Stop
- Remote start/stop charging
- Time setting charging
- Electricity measurement and reporting
- Firmware upgrade
- Diagnostic file upload
- Card number identification and management
- Load balancing based on charging schedule
Highlights :
- 3 faze, 22kW+22kW (64A Total)
- Dual Soket, Tip 2 (IEC 62196-2)
- Plug and charge , RFID card, App
- LCD ekran+ LED svetla
- OCPP 1.6J
- Full protekcija
- 3 godine garancije
- Zidno kacenje
- 2 ruke
SPECIFICATION
| Models | BCPCV-DT2N-P | BCPCV-CT2N-P |
| Maximum Power | 2*22kw | 2*22kw |
| Input/Output Voltage | AC400V3-Phase | AC400V3-Phase |
| Input Frequency | 50HZ/60HZ | |
| Tethered/Socket | Socket | Tethered |
| Meter | Built-in Electric Meter | |
| Display | Five-inch LCD Screen + LED Lights | |
| Charging protocol | OCPP1.6-J | |
| Incoming line method | Single Input | |
| Rate Charging Current | 2*(6‑32A) | |
| T2S Socket | ⭘ | ✖ |
| RFID | ✔ | ✔ |
| DLB | ⭘ | ⭘ |
| Wi-Fi | ✔ | ✔ |
| Ethernet | ✔ | ✔ |
| Bluetooth | ✔ | ✔ |
| 4G | ⭘ | ⭘ |
| Over Voltage &Under Voltage Protection | ✔ | ✔ |
| Emergency Stop | ✔ | ✔ |
| Over Current Protection | ✔ | ✔ |
| CP Signal Short Circuit Protection | ✔ | ✔ |
| Over Temperature Protection | ✔ | ✔ |
| Lightning Protection | ✔ | ✔ |
| Contactor Adhesion Protection | ✔ | ✔ |
| Protection Degree | IP54 | |
| Environment Temperature | -30°C~+55°C | |
| Charger Dimension | 350mm*220mm*1422mm | |
| Maximum Altitude | <2000m | |
| ✖: Without ✔: Standard ⭘: Optional | ||
*** Mogucnost kupovine kompletnog AC kabineta (orman) i ugradnje. Cena kabineta sa svim osiguracima je 18.000din dok je cena ugradnje za ovaj model 50.000din. ***
